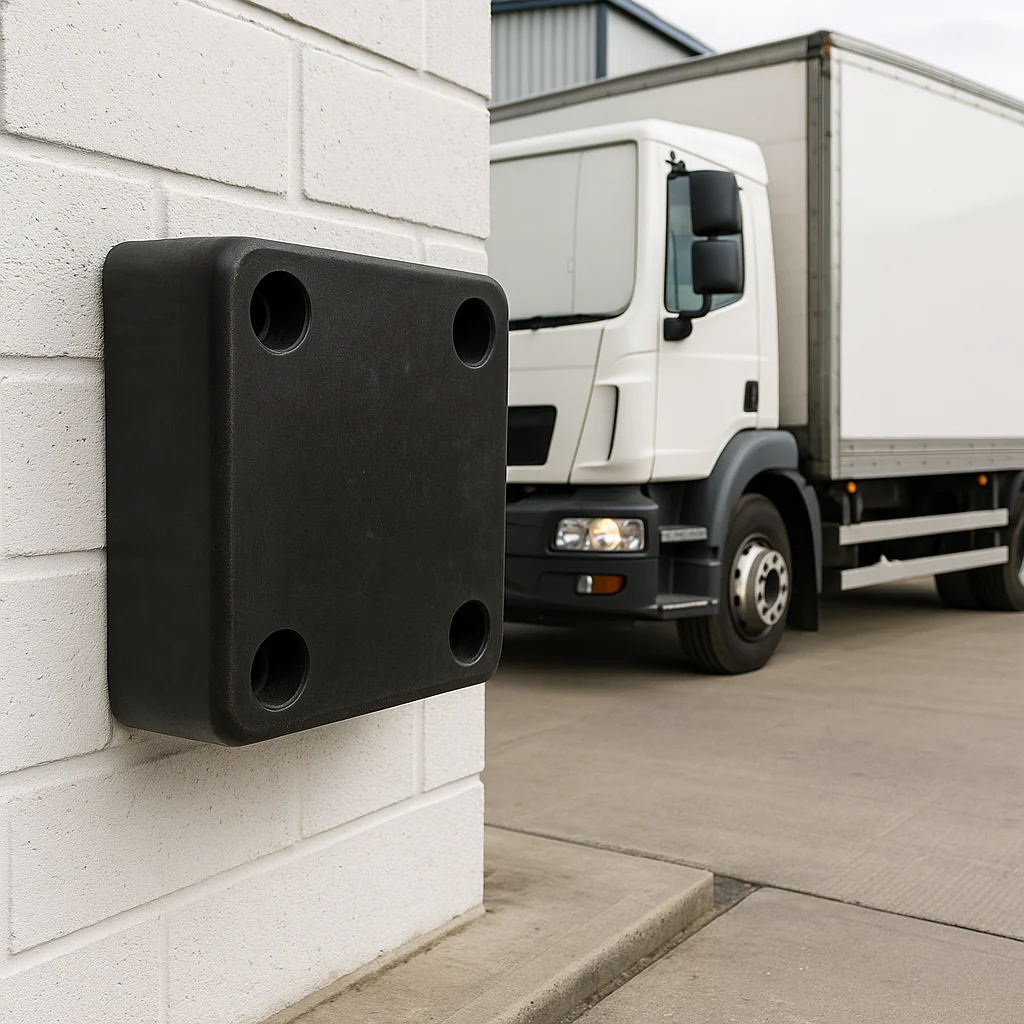

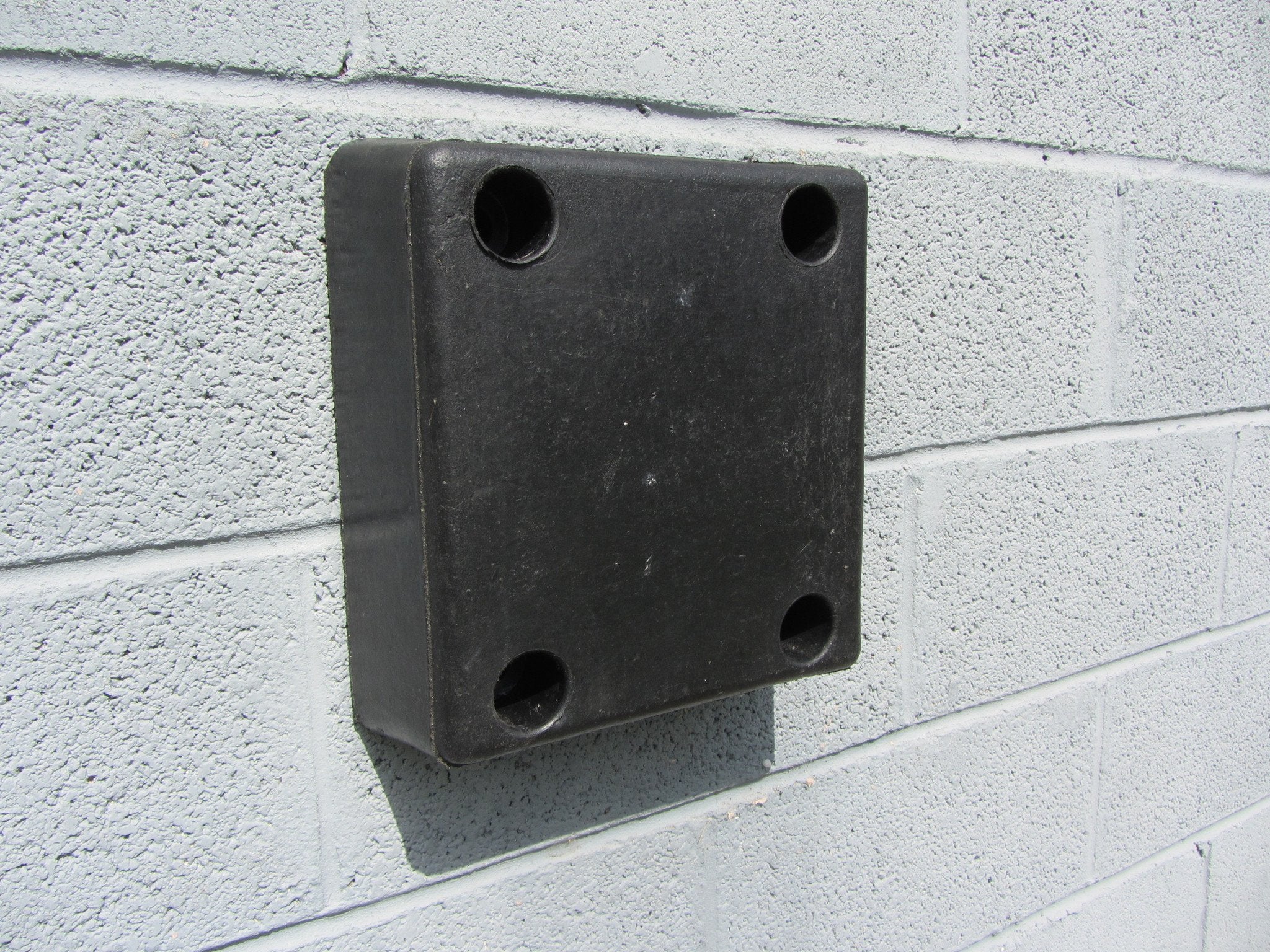

Rubber Dock Bumper 330×305×100mm UK | TPX Loading Bay Protection

Heavy-duty TPX thermoplastic rubber dock bumpers for loading bay wall, dock leveller, and vehicle protection. The 330×305×100mm format provides an excellent combination of face area and projection depth for standard warehouse and distribution centre loading bays throughout the UK.

Technical Specifications

Dimensions	330mm × 305mm × 100mm
Material	TPX Thermoplastic Rubber
Face Area	330mm × 305mm
Projection	100mm from wall
Colour	Black
Application	Warehouse docks, distribution centres, HGV bays
Free Delivery	UK mainland included

Key Benefits

• Superior energy absorption — TPX rubber compresses under impact and recovers, protecting both structure and vehicle
• Large face area — 330×305mm contact surface distributes load, preventing trailer panel damage
• 100mm projection — keeps vehicles clear of dock walls, preventing abrasion and contact damage
• All-weather performance — UV and ozone stable, suitable for exposed outdoor loading bays
• Long service life — TPX outlasts standard foam dock bumpers in high-cycle environments

Applications

Used in warehouse loading docks, distribution centres, cold stores, supermarket receiving bays, manufacturing facilities, and anywhere HGVs, vans or curtain-siders reverse to a bay. Two bumpers per dock (one each side) is the standard configuration.

Installation

Fix at truck-bed height (typically 1.0–1.2m from dock floor). Use M12 bolts with chemical or expansion anchors rated for repeated impact loads. Inspect annually for compression set, cracking, or fixing looseness.

Frequently Asked Questions

How many dock bumpers do I need per bay?
Two per bay — one on each side at vehicle sill height. This keeps the vehicle centred and evenly distributes impact forces on the dock structure.

Can these be used outdoors?
Yes. TPX rubber is fully resistant to UV, ozone, rain, and frost — suitable for open external loading bays.

What anchors should I use?
For concrete or blockwork, M12 chemical anchors (resin type) are recommended. For steel-framed docks, through-bolts with large washers. Always size anchors for repeated impact loads, not just static weight.

Rubber Dock Bumper 330x305x100mm — Technical Specification

Property	Specification
Dimensions	330mm x 305mm x 100mm
Material	SBR Rubber
Colour	Black
Profile	D-section moulded dock bumper
Impact Rating	Heavy duty — suited for HGV, lorry, truck
Shore A Hardness	60–70°
Fixing	Pre-drilled bolt holes included
Delivery	Free UK delivery

Loading Bay Protection — Why It Matters

Each collision between an HGV and loading bay without adequate rubber bumpers risks structural damage costing thousands to repair. A set of properly specified rubber dock bumpers pays for itself with the first incident avoided. Key advantages:

• High-impact energy absorption — this 100mm depth provides significant cushioning for heavy vehicles
• Moulded profile — uniform compression across the contact face prevents point loading
• Pre-drilled — ready to bolt directly onto concrete, brick or steel dock faces
• Resists UV and weathering — SBR performs year-round in UK outdoor conditions
• Cost-effective protection — far cheaper than repeated dock face repairs
